1 Bolt Stainless Steel Fire Performance Cleats

Features & Benefits

Suitable for indoor & outdoor applications
Manufactured from fabricated 316L stainless steel
Stackable single bolt fixing design
Tested to European standard EN50200 for Fire Testing
Tested & certified to BS EN61914:2016 Cable Cleats for Electrical Installations
Short Circuit Tested to 60kA Peak / 29kA rms (0.1sec 600mm fixed cleat centres and 105mm cable centres in parallel formation)
Temperature Range -60 C to 250 C

Fire performance cable cleats

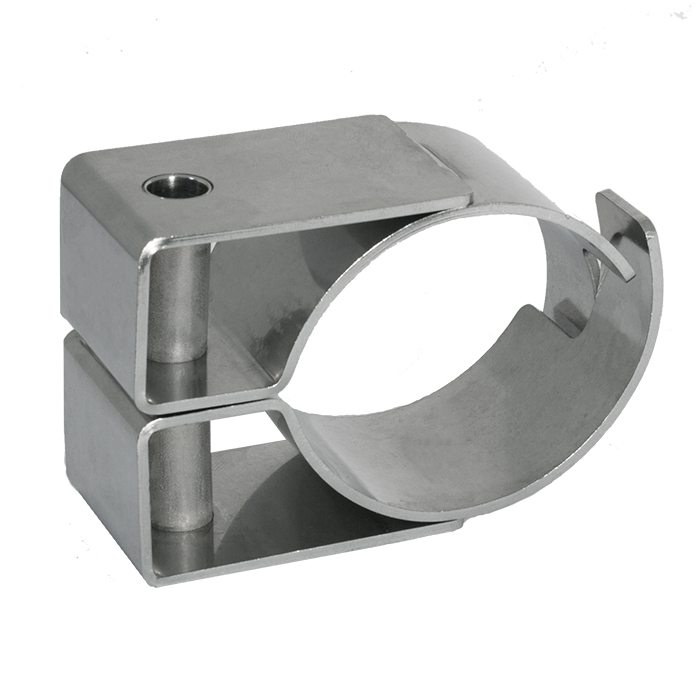

1 Bolt Stainless Steel Fire Performance Cleats - Helios

Standard range of Stainless Steel 1 bolt cable cleats designed for use with single core fire performance cable in commercial applications on cable systems with low short circuit forces.

Part No	Cable Dia Range mm	Fixing Holes
FPC1619	16-19	1 x M10
FPC1923	19-23	1 x M10
FPC2327	23-27	1 x M10
FPC2732	27-32	1 x M10
FPC3238	32-38	1 x M10
FPC3846	38-46	1 x M10
FPC4651	46-51	1 x M10
FPC5157	51-57	1 x M10
