LV 45° Angle Tinned Copper Crimp Lugs

Features & Benefits

Copper lugs are electrolytically tin plated to avoid oxidation and prevent corrosion
Angled cable lugs for offset connections
Crimp dies and installation tooling available on request
Other lug sizes to suit larger and smaller cables available on request

LV tinned copper crimp lugs & splices

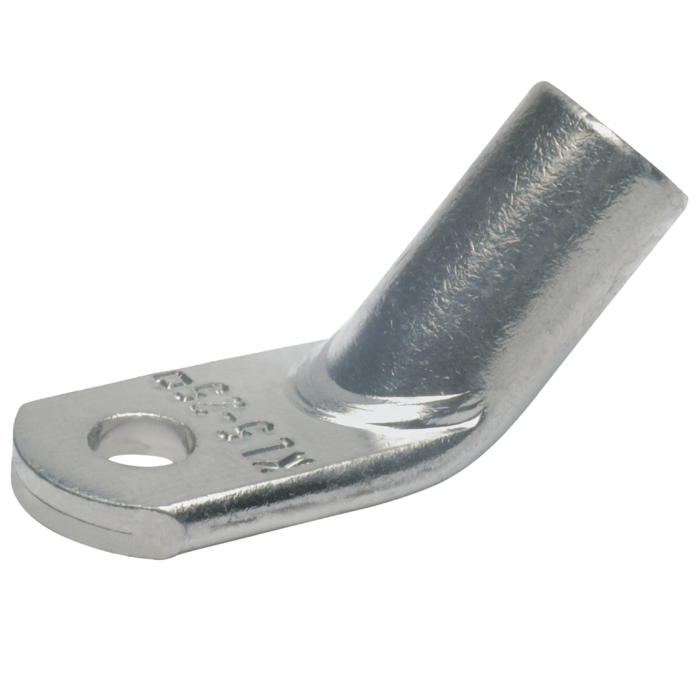

LV 45° Angle Tinned Copper Crimp Lugs

A premium range of 45° angled tinned copper crimp lugs that are designed to be crimped onto copper LV cables to facilitate the termination of the cable via the lug hole for angled connections.

Part No	Size	Palm Hole Size **
CL6-A1-**	6	5,6,8,10,12
CL10-A1-**	10	5,6,8,10,12
CL16-A1-**	16	5,6,8,10,12
CL25-A1-**	25	5,6,8,10,12,14
CL35-A1-**	35	5,6,8,10,12,14,16
CL50-A1-**	50	5,6,8,10,12,14,16,20
CL70-A1-**	70	6,8,10,12,14,16,20
CL95-A1-**	95	8,10,12,14,16,20
CL120-A1-**	120	8,10,12,14,16,20
CL150-A1-**	150	8,10,12,14,16
CL185-A1-**	185	10,12,14,16,20
CL240-A1-**	240	10,12,14,16,20
CL300-A1-**	300	12,14,16,20
CL400-A1-**	400	12,14,16,20
