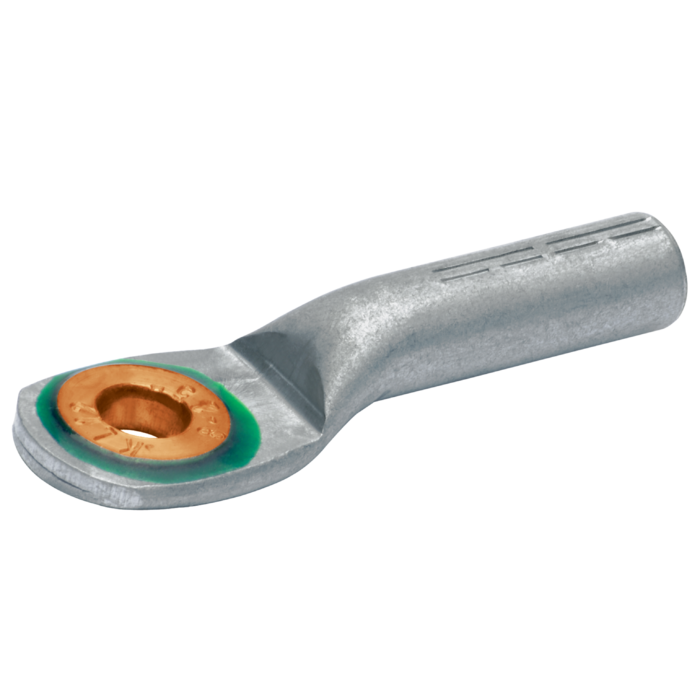

LV Bi-Metallic Copper Eye Crimp Lugs

Features & Benefits

Manufactured from E-Aluminium and Copper eyelet in screw in section Barrier design with oil stop and solid copper palm
Crimp dies and installation tooling available on request
Other lug sizes to suit larger and smaller cables available on request

LV bi-metallic crimp lugs

LV Bi-Metallic Copper Eye Crimp Lugs

A premium range of bi-metallic copper eye crimp lugs that are designed to be crimped onto non tension aluminium LV cables to facilitate a termination via the lug hole onto copper connections.

Part No	Size	Palm Hole Size **
BMEL10-**	10	6,8
BMEL16-**	16	8,10
BMEL25-**	25	8,10
BMEL35-**	35	10,12
BMEL50-**	50	10,12
BMEL70-**	70	10,12
BMEL95-**	95	10,12,16
BMEL120-**	120	12,16
BMEL150-**	150	12,16,20
BMEL185-**	185	12,16,20
BMEL240-**	240	12,16,20
BMEL300-**	300	16,20
BMEL400-**	400	16,20
