Features & Benefits

  • Copper lugs are electrolytically tin plated to avoid oxidation and prevent corrosion
  • Cable lugs are rated upto 11kV when installed in isolation
  • Simple & safe connection due to flat contact surfaces and internal chamfer
  • Crimp dies and installation tooling available on request
  • Other lug sizes to suit larger and smaller cables available on request

MV tinned copper crimp lugs & splices

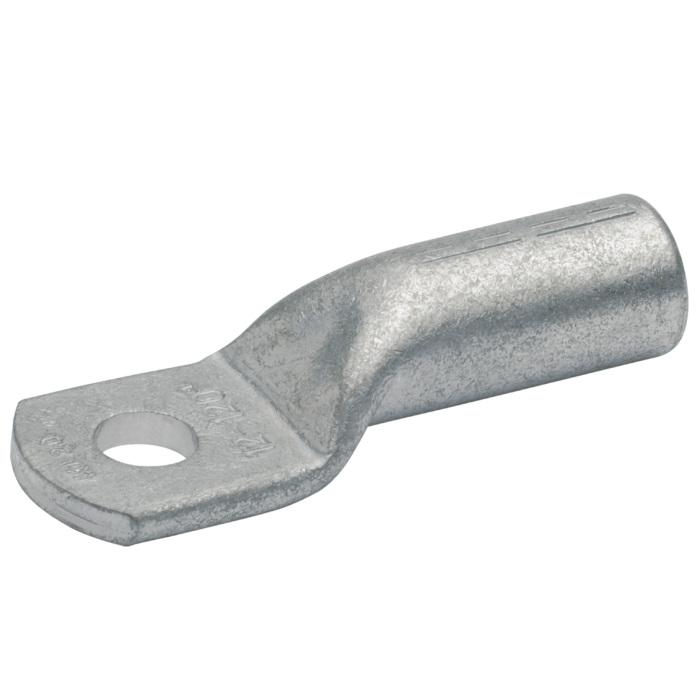

MV Standard Tinned Copper Crimp Lugs

A premium range of tinned copper crimp lugs that are designed to be crimped onto copper MV cables to facilitate the termination of the cable via the lug hole.

Part No SizePalm Hole Size **
MVCL6-MS**65,6,8
MVCL10-MS**105,6,8
MVCL16-MS**166,8,10,12
MVCL25-MS**256,8,10,12
MVCL35-MS**356,8,10,12,14
MVCL50-MS**508,10,12,14,16
MVCL70-MS**708,10,12,14,16
MVCL95-MS**958,10,12,14,16
MVCL120-MS**12010,12,14,16,20
MVCL150-MS**15010,12,14,16,20
MVCL185-MS**18510,12,14,16,20
MVCL240-MS**24012,14,16,20
MVCL300-MS**30014,16,20
MVCL400-MS**40014,16,20
MVCL500-MS**50016,20
MVCL625-MS**62516,20
MVCL800-MS**80016,20
MVCL1000-MS**100016,20
