Features & Benefits

Conductor size calculated based on system fault rating and the recommendations of BS7430
Manufactured from high conductivity copper to BS EN 13601
Soft annealed to aid conductor installation
Can be supplied with bespoke stamping (ie National Grid)
Non standard coil sizes on request
Bespoke conductor sizes available on request

Earthing conductors

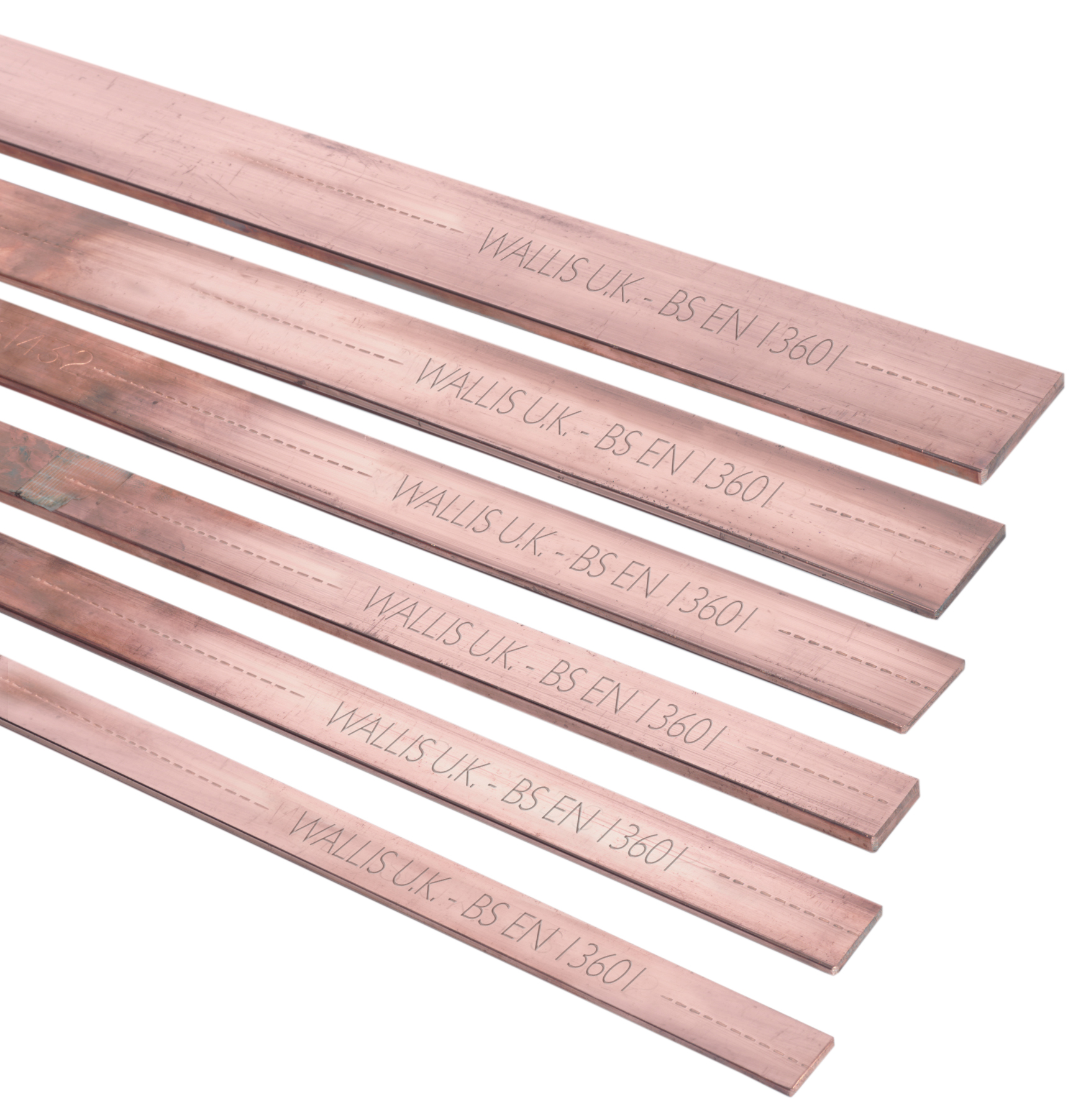

Bare Soft Annealed Copper Tape

A range of soft annealed bare copper tapes that are used as high conductivity, corrosion resistant conductors as part of an earthing or lightning protection system.

Part No	Size mm	CSA mm²	Weight m / kg	Standard Coil Size m
TC253	25 x 3	75	0.67	50
TC254	25 x 4	100	0.89	50
TC256	25 x 6	150	1.34	40
TC386	38 x 6	228	2.03	25
TC403	40 x 3	120	1.07	40
TC404	40 x 4	160	1.43	30
TC406	40 x 6	240	2.14	25
TC504	50 x 4	200	1.78	30
TC506	50 x 6	300	2.68	20
TC606	60 x 6	360	3.21	15
TC706	70 x 6	420	3.75	15
TC806	80 x 6	480	4.28	12
