Features & Benefits

Manufactured from high conductivity copper to BS EN 13601
Installed with crimp dies and crimping tool (see tools & equipment section for more information)
Available in larger sizes on request

Conductor connection clamps

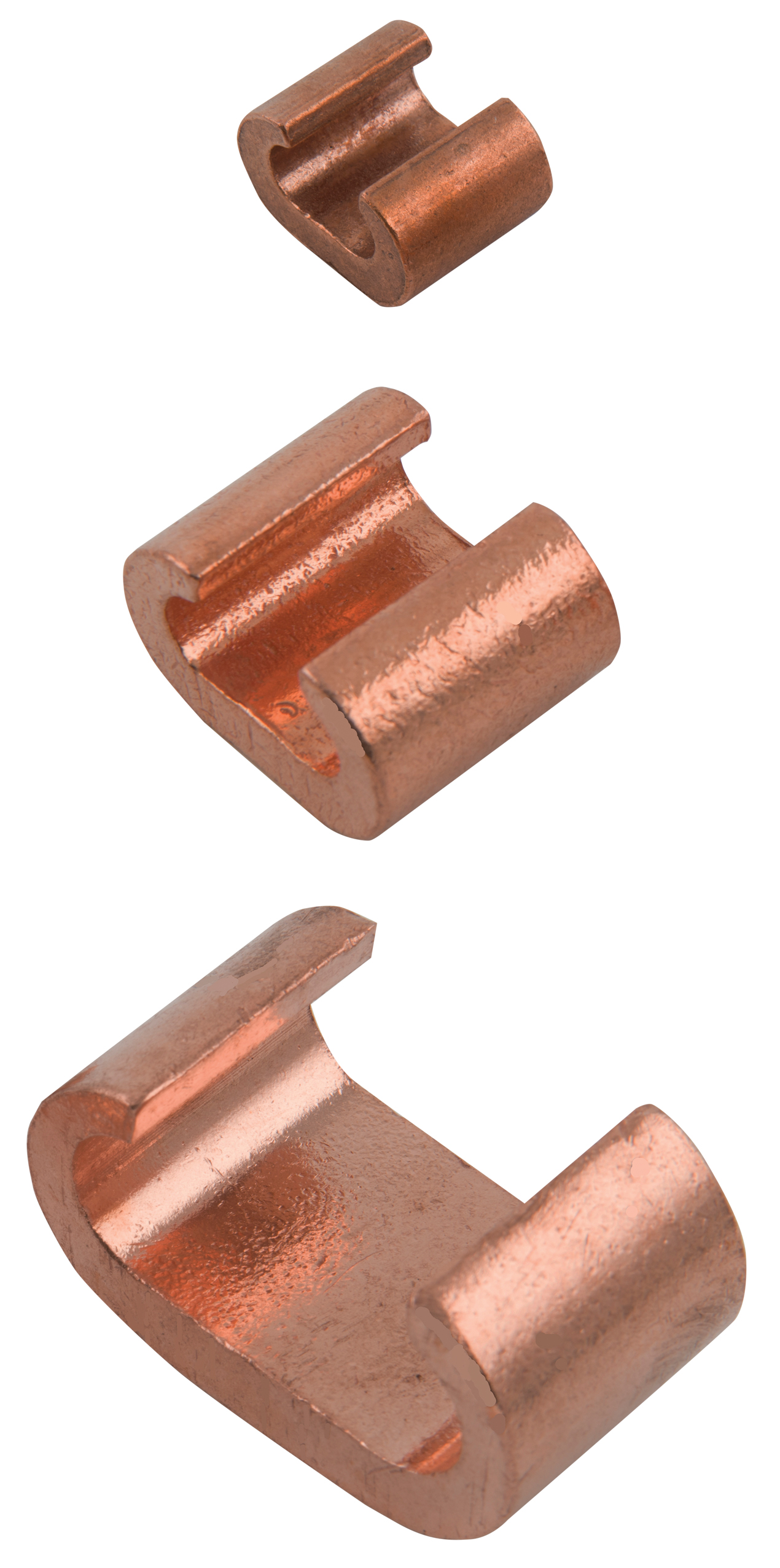

C Crimp Cable Connectors

A range of C crimp cable connector clamps designed for tap and parallel connections with stranded copper cables in below ground earthing systems.

Part No	Main mm²	Tap mm²	Length mm	Width mm	Heightmm	Weight Kg
CCC025	25	10-25	24	20	15	0.04
CCC035	35	25-35	27	20	15	0.05
CCC050	50	16-50	27	20	17	0.07
CCC070	50-70	35-70	34	28	21	0.07
CCC095	70-95	95	41	30	26	0.12
CCC0120	120	35-120	45	30	28	0.12
CCC0120	150	6-70	45	30	28	0.15
CCC0150	150	95-150	45	30	28	0.15
CCC0185	120-185	95-185	54	35	33	0.20
CCC0185	150-185	70-150	54	35	33	0.20
