Non Metallic DC Tape Clips

Features & Benefits

One piece hinged design to ensure no dropped or lost lids
UV Stabilised to prevent degradation
Non brittle to protect against cold weather
Available in 6 colours on request
Fix with Countersunk woodscrew 1½“ x No 10 with No 10 Wallplug
Available in other sizes on request

Conductor connection clamps

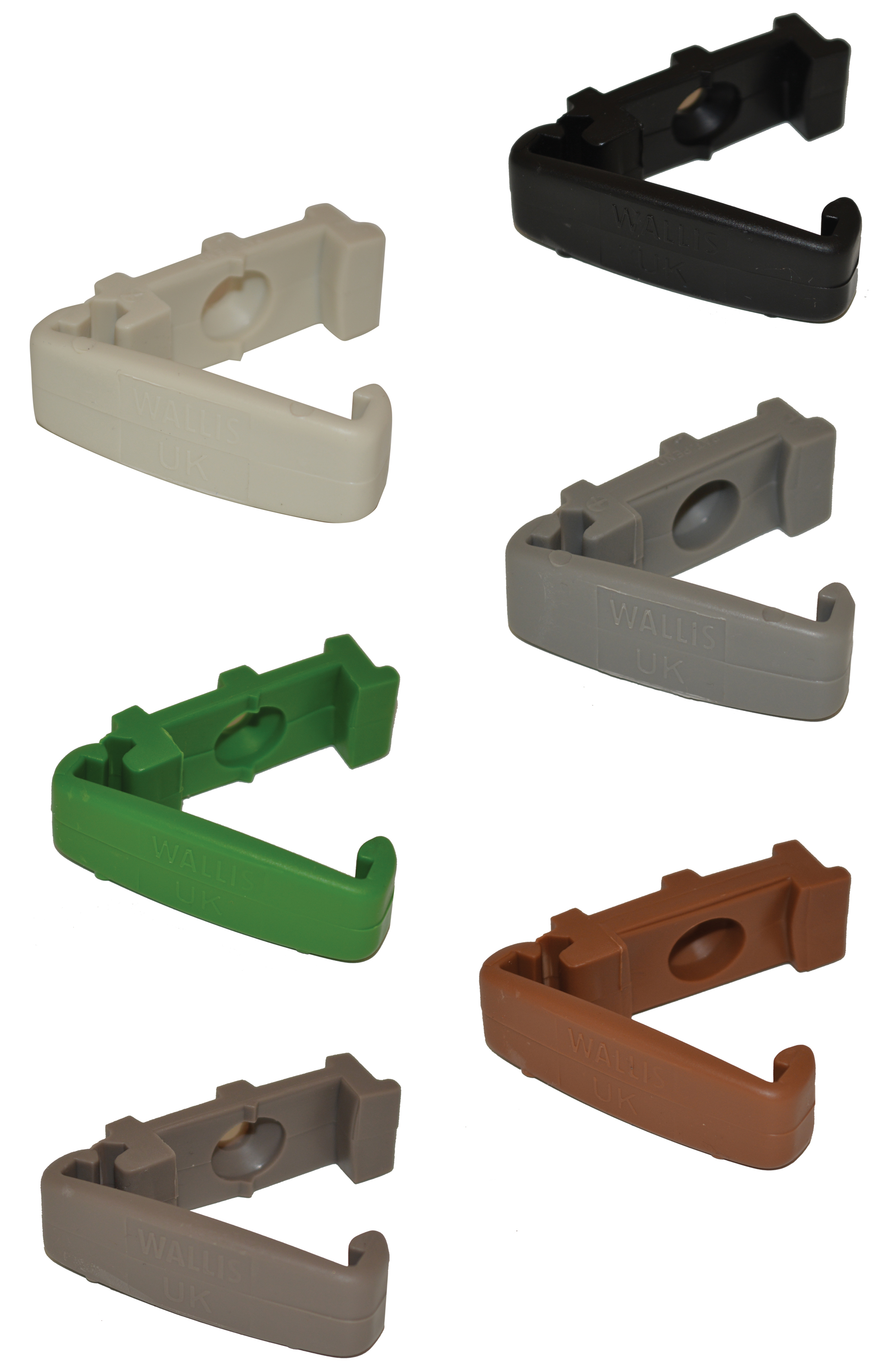

Non Metallic DC Tape Clips

A range of Non Metallic DC Tape clips designed to fix flat tape conductors to a building structure in a lightning protection system or a foundation in an above ground section of an earthing system.

Part No	Size mm	Length mm	Width mm	Height mm	Weight Kg	Colour
NM253BL	25 x 3	50	18	16	0.01	Black
NM253B	25 x 3	50	18	16	0.01	Brown
NM404BL	40 x 4	85	31	27	0.03	Black
NM404B	40 x 4	85	31	27	0.03	Brown
NM406BL	40 x 6	85	31	27	0.03	Black
NM406B	40 x 6	85	31	27	0.03	Brown
NM506BL	50 x 6	85	31	27	0.03	Black
NM506B	50 x 6	85	31	27	0.03	Brown
