Features & Benefits

The heatshrink end caps are made from thermally stabilized cross linked polymeric material and internally coated with mastic / hot melt adhesive
UV & Weather resistant
Resistant to aggressive chemical and moisture
Suitable for use in temperatures between -30C and +110C
Supplied in black as standard

Cable breakouts & end caps

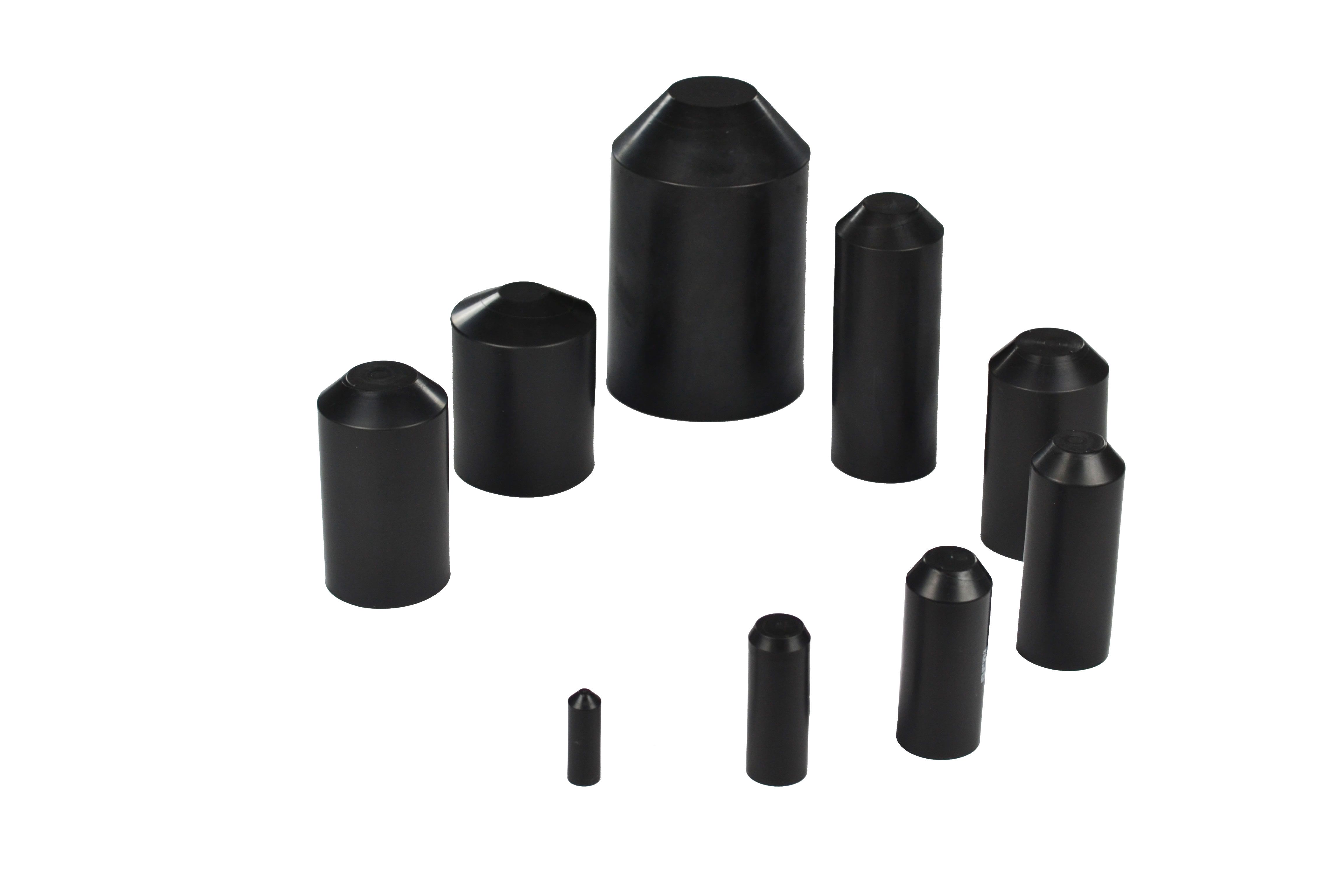

Heatshrink End Caps

A range of heatshrink cable end caps that designed to provide a moisture tight seal on all types of low and medium voltage cables for temporary storage.

Part No	Shrink Range mm	Cable Range mm	Length mm	Thickness mm
EC26/11-45	26-11	23-12	45	2.8
EC42/15-165	42-15	38-17	165	3.2
EC62/25-165	62-25	56-28	165	4.2
EC75/34-190	75-34	68-37	190	4.0
EC105/45-105	105-45	95-50	105	3.5
EC145/71-120	145-71	131-78	120	4.6
EC200/90-160	200-90	180-99	160	5.0
EC310/120-220	310-120	280-140	220	5.0
EC400/204-220	400-204	380-230	220	5.0
EC500/200-220	500-200	480-230	220	5.0
