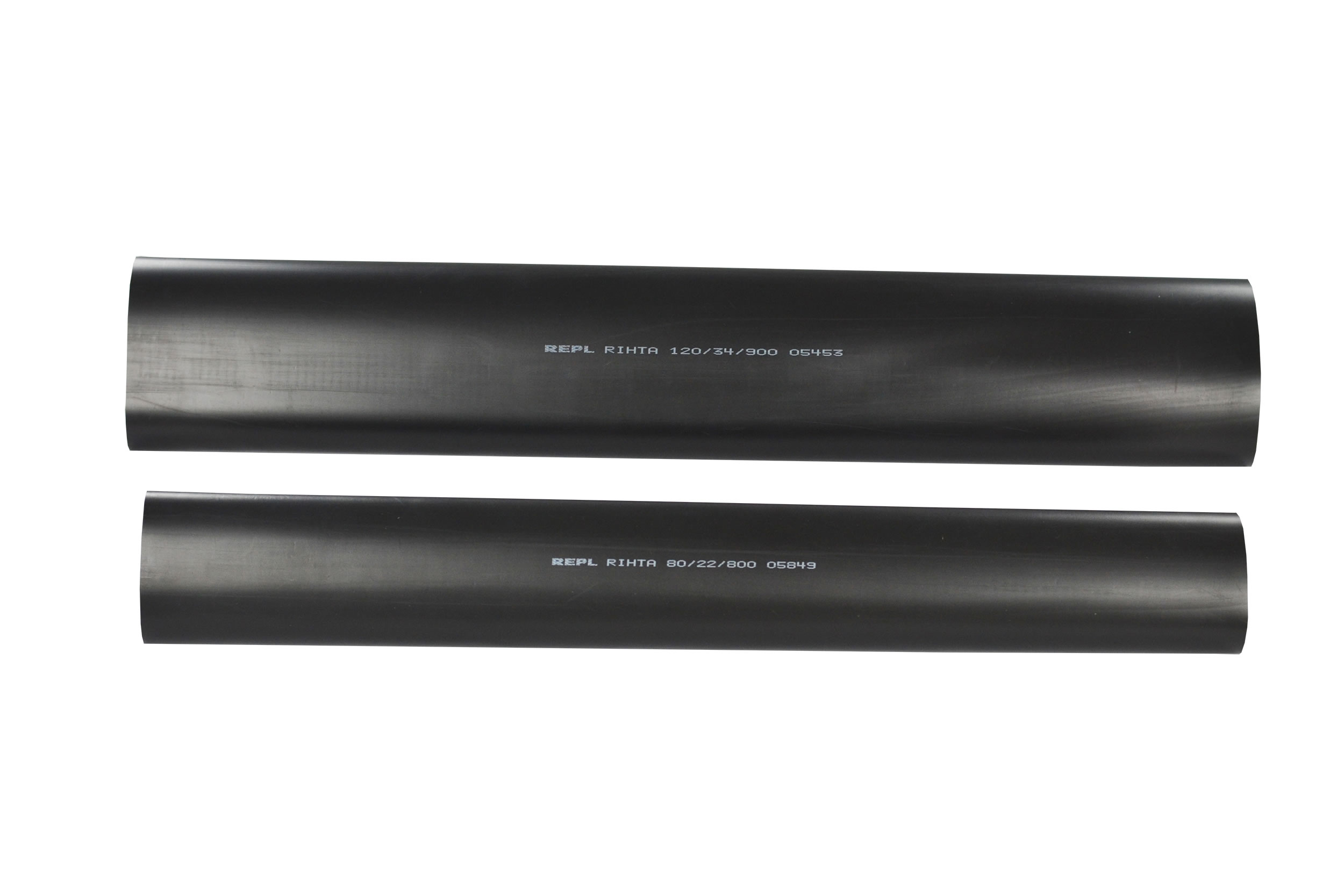

Thick Wall Heatshrink Tubes

Features & Benefits

The heatshrink tubes are made from thermally stabilized cross linked polymeric material
UV & Weather resistant
Dielectric Strength 200kV/cm
Shrink Ratio 3 : 1
Supplied in black as standard
Available without adhesive lined sealing on request
Available in other sizes on request

Cable insulation & repair

Thick Wall Heatshrink Tubes

A range of medium wall heatshrink tubing that is designed for electrical insulation, sealing and cable jacketing of low voltage power cables rated up to 1kV in underground applications.

Part No	Cable Range mm	Thickness mm
RIHTA40/12	40-12	4.00
RIHTA55/16	55-16	4.10
RIHTA65/19	65-19	4.20
RIHTA80/22	80-22	4.20
RIHTA100/30	100-30	4.40
RIHTA120/34	120-34	4.40
RIHTA140/37	140-37	4.50
RIHTA160/50	160-50	4.50
RIHTA180/60	180-60	4.50
