MV Busbar Insulating Tubes

Features & Benefits

The heatshrink busbar insulating tubes are made from thermally stabilized and cross linked polymeric material
Suitable for indoor and outdoor applications
UV & Weather resistant
Shrink Ratio 3 : 1
Dielectric Strength 190kV/cm
Unlimited Shelf Life Supplied in red as standard

MV busbar insulation

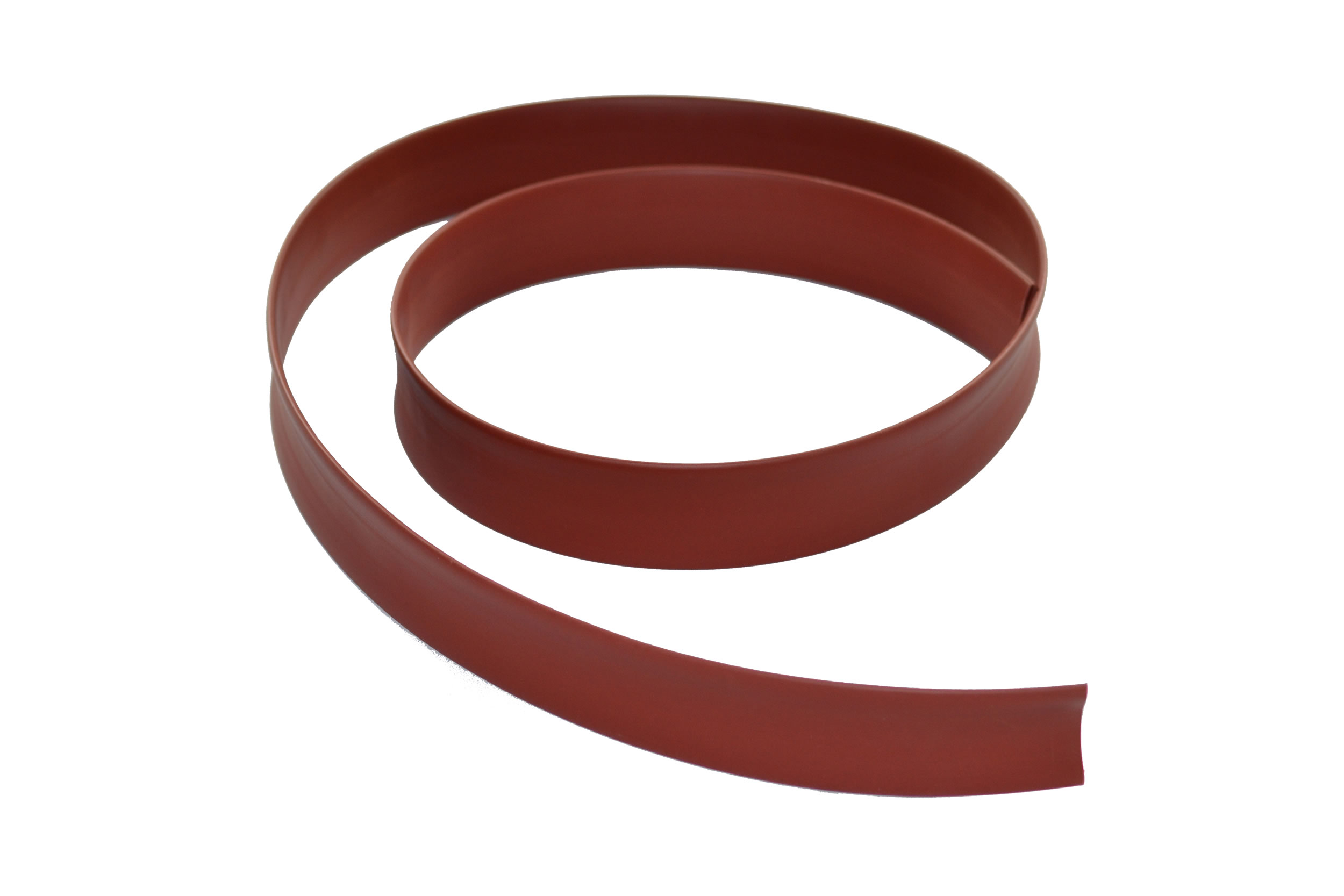

MV Busbar Insulating Tubes

A range of heatshrink busbar insulating tubes that designed to provide insulation enhancement and protection for copper or aluminium busbar sections up to 36kV to prevent flashovers and accidentally induced discharge.

Part No	Shrink Range mm	Thickness mm	Spool Qty m
RIBT15/6	15-6	2.50	30
RIBT20/8	20-8	2.50	30
RIBT25/10	25-10	2.50	30
RIBT30/12	30-12	2.50	30
RIBT40/16	40-16	2.50	30
RIBT50/20	50-20	2.80	15
RIBT60/24	60-24	2.80	15
RIBT70/28	70-28	2.80	15
RIBT80/32	80-32	2.80	15
RIBT100/40	100-40	2.80	15
RIBT120/48	120-48	2.80	15
