11kV Trifurcating Heat Shrink Cable Joint – 3C/SWA/CTS /XLPE

Features & Benefits

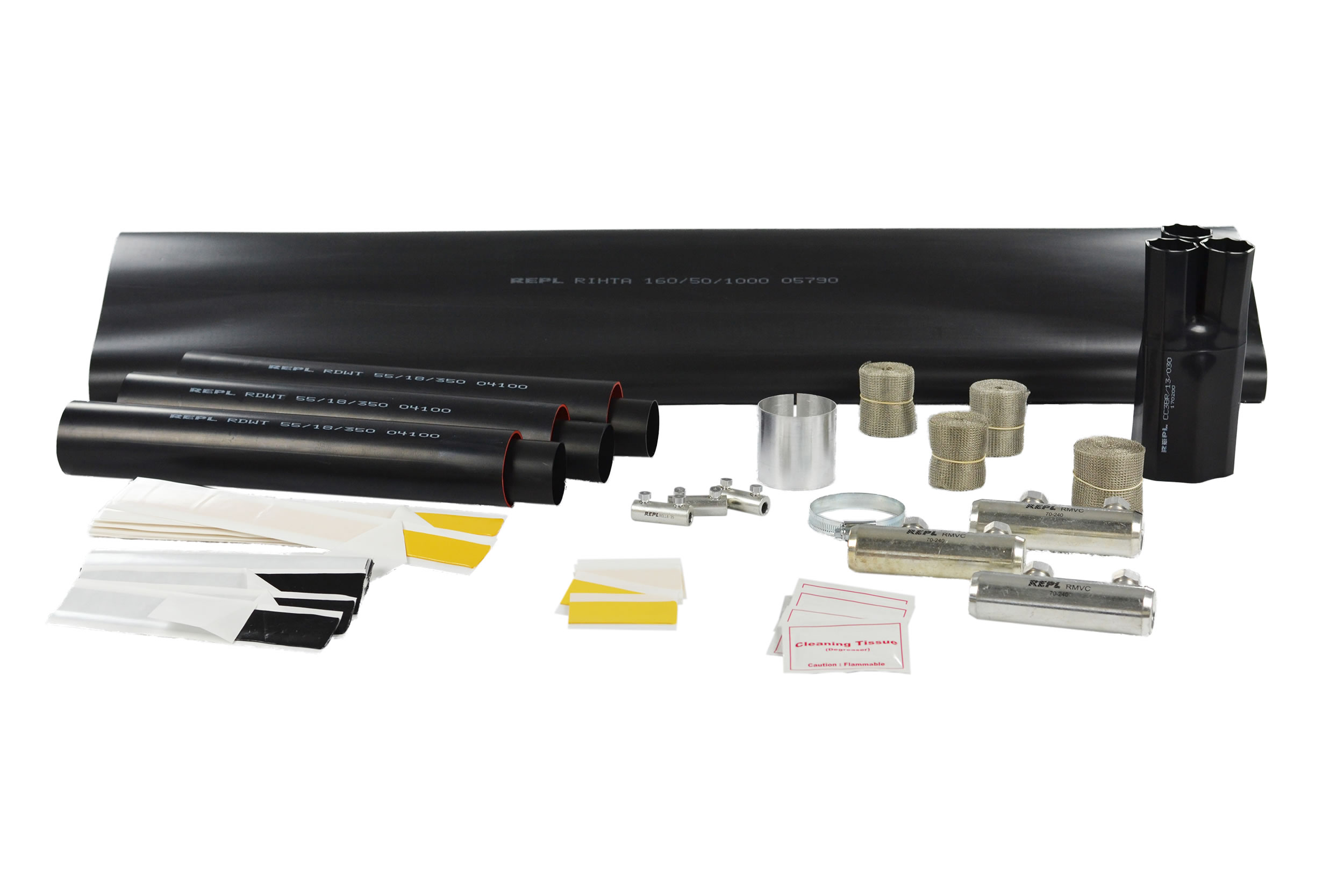

The trifurcating joints comprises of stress control tube, insulating tube, stress grading mastic, armour earthing kit, sealing mastics, 3 core breakout and heavy wall heat shrink corrosion protection tube
Suitable for three core cables to single core cables
Small range covers wide cable cross sections
Unlimited shelf life
Options available for single core armoured cables - contact office for further info
Certified and Tested to CENELEC HD 629.1, IEC 60502-4 and IEEE-4

11kv trifurcating/trifurcating transition cable joints

11kV Trifurcating Heat Shrink Cable Joint – 3C/SWA/CTS /XLPE – 1C/CWS/XLPE

A range of heat shrink trifurcating joints to connect three core XLPE SWA cables to single core unarmoured or Triplex Cables. All joints are suitable for both compression or mechanical connectors.

Part No	Cable Cross Section	Voltage
RHTJU 12X 25-70	25-70mm2	11kv
RHTJU 12X 95-185	95-185mm2	11kv
RHTJU 12X 185-300	185-300mm2	11kv
RHTJU 12X 400-630	400-630mm2	11kv
