11kV Unscreened Separable Connector

Features & Benefits

The unscreened separable connectors are manufactured from silicone rubber based material
Designed to be connected onto C Interface bushing in according to EN 50180 & EN50181
Can be easily disconnected and reconnected with standard tooling under dead break conditions
Voltage rated upto 17.5kV
Excellent anti tracking properties
Unlimited shelf life in normal storage temperatures
One size is suitable for all cable types from 70-300mm²The body and the termination are not screened therefore during operation the surfaces will be considered live and must not be touched

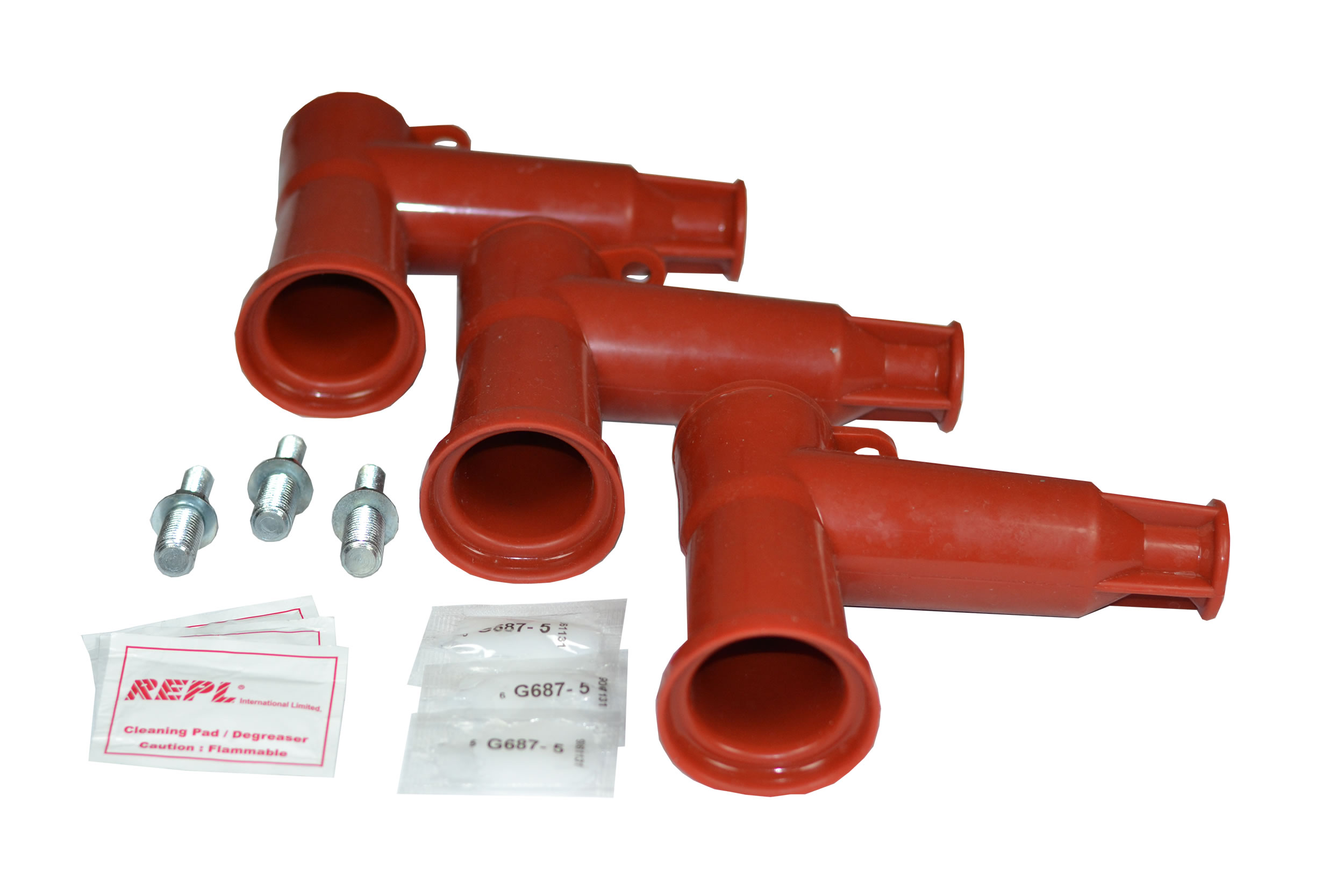

Kit comprises a set of 3 unscreened separable connectors, installation grease, M16 to M12 threaded stud, washers and nut

11kv unscreened separable connector - type c interface

11kV Unscreened Separable Connector - Type C Interface

A range of unscreened separable connectors that are designed to be used with standard MV cable terminations to connect 11kV cables onto C interface bushings without the need for screened connectors.

Part No	Voltage	Current	Cable Size Range
RUSK-1	11kV	630 A	70-300mm²
